PVC Film Blowing Extruder Single Screw Barrel

Unit Price:	600 USD
Min. Order:	5 Set/Sets

Packaging:	wooden case(export standard)
Supply Ability:	500 Set/Sets per Month
Port:	Ningbo

Product Description

Extruder screw barrel > PVC Film Blowing Extruder Single Screw Barrel

Product Description

1.Brand: ZHSU 3.Bimetallic depth:0.8mm~3mm

2.Nitride depth:0.5~0.8mm 4.For what machine: Extrusion machine

Product Name	Single Screw And Barrel For Extruder
Material	38CrMoAIA; 42CrMo; SKD11
Application:	Plastic machine conponents
Ntride Depth:	0.5-0.8mm
Nitrided Hardness	HV900°~1000°
Nitrided Brittleness	above 2 stage
Surface Roughness	Ra0.4
Screw straightness	0.015mm
Hardess of surface chromium-plating after Nitriding	HV≥950HV
Chromium plating Depth	0.05~0.10mm
Bimetallic Depth	0.8~3.0mm
Bimetallic Hardness:	Bimetallic hardness: HRC50-65
Bimetallic Power	iron,nickel,tungsten,molybdenum
Certificate:	ISO9001:2008
Featrue:	Wear and corrosion resistance
Warranty	12 months
Used	Granules, film, bag, barrel, pipe, profile, plates,sheet, etc.

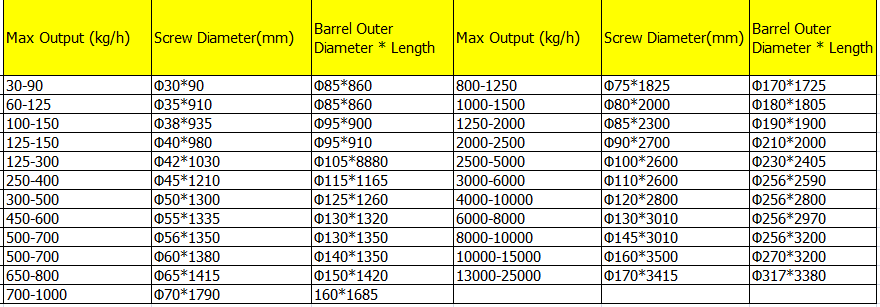

Products Show

Technological Process:

Blanking→Rough Machining→Quenching & Tempering →Semi Finishing Machining→Finish Machining→Nitriding or Bimetallic

Treatment→Detecting→Finished Product →Debugging After Treatment

REFERENCE ONLY FOR SINGLE SCREW AND BARREL , PLEASE CONTACT ME FOR DETAILS.

Our Advantage

Bimetallic Screw:

① Strong abration resistance, good for the 30% glass fiber and reworked materials.
② Super hard alloy of high density, low porosity and high hardness.
③ Uniformity heating of power and low strength pressure.
④ With high corrosion resistance, high wear resistance and high temperature resistance properties.

Bimetallic Barrel:

① 2-5mm-thick alloy coat on the barrel inner wall

② Excellent corroion resistance, abrasion resistance and high working temperatre.
③ Useful service life is greatly improved
④ Able to process special plastic to enhance the abrasion life, such as engineering plastics, fluorine plastics, PPO, and tec.

Zhejiang Zhongsu Screw Co., Ltd.

Our company has years of experience in researching, designing and manufacturing highly precise screws and barrels, screw assembly parts and barrel assembly parts. Our company is located in the Industrial zone of Jintang Town, Dinghai County, Zhoushan City, Zhejiang Province.

These products are precisely engineered, using the best quality raw materials that we procure from a trusted vendor base. Furthermore, the long lasting life, corrosion resistance, dimensional accuracy, robust construction and economical prices of our products make them suitable for heavy usage in most of the industrial applications.
