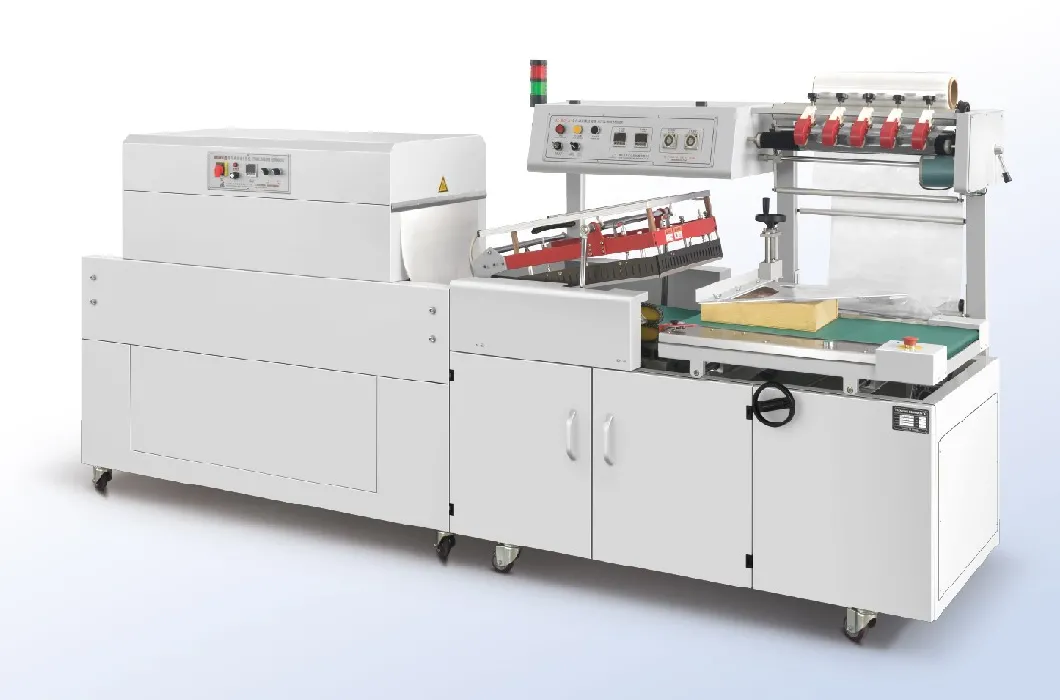

RS-400A Automatic L-Bar Sealing & Shrink Packing Machine

  • RS-400A Automatic L-Bar Sealing & Shrink Packing Machine
  • RS-400A Automatic L-Bar Sealing & Shrink Packing Machine
  • RS-400A Automatic L-Bar Sealing & Shrink Packing Machine
  • RS-400A Automatic L-Bar Sealing & Shrink Packing Machine

RS-400A Automatic L-Bar Sealing & Shrink Packing Machine

    Unit Price: 6000~8000 USD
    Min. Order: 1 Set/Sets
    Packaging: Professional Export Wooden Case
    Productivity: 30sets/Month
    Brand: SCIENCE
    Transportation: Ocean
    Place of Origin: Zhejiang,China
    Supply Ability: 30sets/Month
    Certificate: CE
    HS Code: 8422400000
    Port: Ningbo

Basic Info

Model No.: RS-400A

Product Description

Heat Shrink Wrapping Machine

RS-400A Automatic L-Bar Sealing & Shrink Packing Machine



Features:
1. The machine adopts imported touching screen, on which all settings and operation can be done. Meanwhile, various product data can be stored in advance, and operator only to select parameters from the computer while usage.
2. According to different collocations for the machine and different products, the max packing speed is up to 80pcs/min.
3. Constant temperature heat sealing and cutting system is suitable for PE. POF etc, industrial standard shrink films, the seal is firm and nice, especially applicable for POF film, adjust the conveyor with the head wheel for packing products of different size. The reliability is higher and easier to operate it .
4. The front feed in systems speed is adjustable, combines a worktable at the end of the tunnel, makes whole machine highly automatic, it runs automatically without an operator comes true.
5. RS-400LA Hi-speed hot air circulating shrink tunnel adopts roller type conveyor, the rollers are covered by silicone gel pipe, they roll automatically, also the conveyor can use mesh belt or S.S. mesh belt instead of rollers. When shrink PE film, need not the rollers roll, easy to convert it by the handle at the end of the tunnel.
6. The temperature inside the tunnel is even, suitable for shrink PE.PVC.POF films.
7. The inner container forms hot air circulation inside tunnel, the volume of hot air can be controlled by the air doors according to the packing requirements for different products.


Main Technical Parameters
SEALING TYPE L SEALING
POWER SUPPLY 380V/50-60HZ/3PHASE
MAX PRODUCT SIZE W≤350MM W+H≤400MM L+H≤480MM
MAX PACKING CAPACITY 15-35 PACKS PER MINUTE
FILM TYPE POLYETHYLENE (PE) / POF FILM
MAX FILM SIZE 530 (WIDTH) X 280MM (OUTER DIAMETER)
POWER CONSUMPTION 8.5KW
TUNNEL OVEN SIZE 1200MM(L) X 400(W) X 220(H) MM
TUNNEL CONVEYOR SPEED VARIABLE, CONTROLLED BY FREQUENCY CONVERTER
TUNNEL CONVEYOR CHAINS WITH SILICON COATED RODS OR STEEL MESH CONVEYOR
WORKING HEIGHT 780-850MM
AIR PRESSURE 0.5MPA (5 BAR)
SEALING KNIFE SAW TEETH CUTTING KNIFE WITH ANTI-STICK TEFLON COATS
OPERATION PANEL SIEMENS COLORFUL TOUCH SCREEN, OMRON TEMPERATURE CONTROLLER
MACHINE MATERIAL CARBON STEEL
MACHINE WEIGHT 450KG
MACHINE DIMENSIONS 1600 X 770 X 1450MM


Drawings
RS-400A Automatic L-Bar Sealing & Shrink Packing Machine

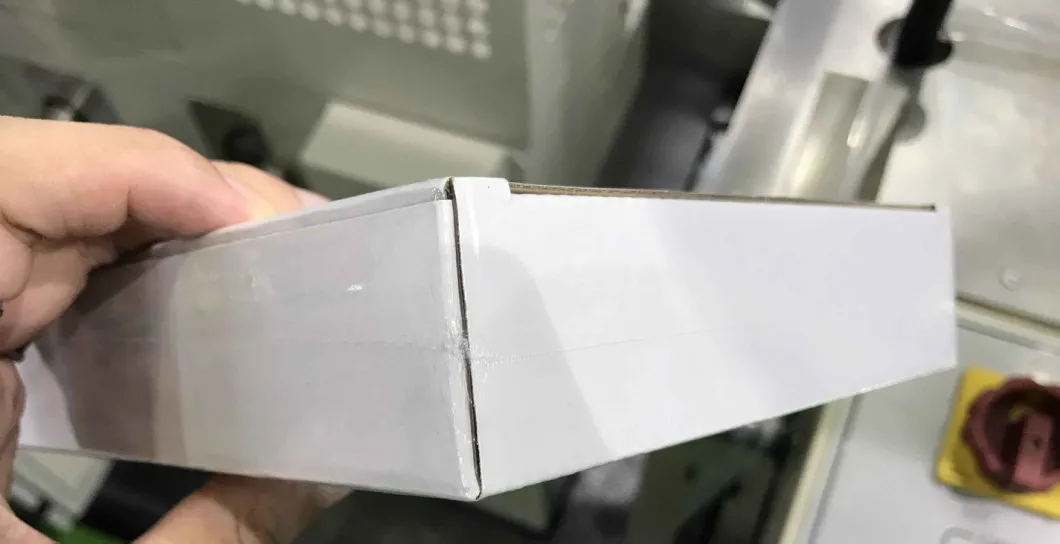

Sample
RS-400A Automatic L-Bar Sealing & Shrink Packing Machine
