Processless CTP Printing Plate
| Payment Type: | L/C,T/T,D/P |
|---|---|
| Terms of Trade: | FOB,CFR,CIF,EXW |
| Delivery Time: | 30 Days |
| Packaging: | Carton wooden |
|---|---|
| Transportation: | Ocean,Land,Air |
| Place of Origin: | China |
| Supply Ability: | Strong |
| Port: | ShangHai Port,Ningbo Port |
Basic Info
Model No.: BH1713F
Product Description

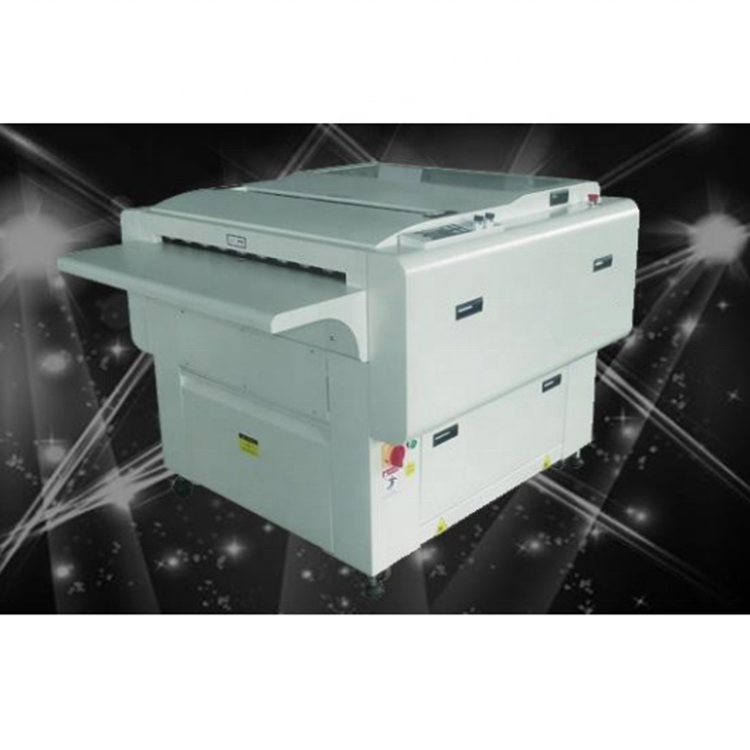

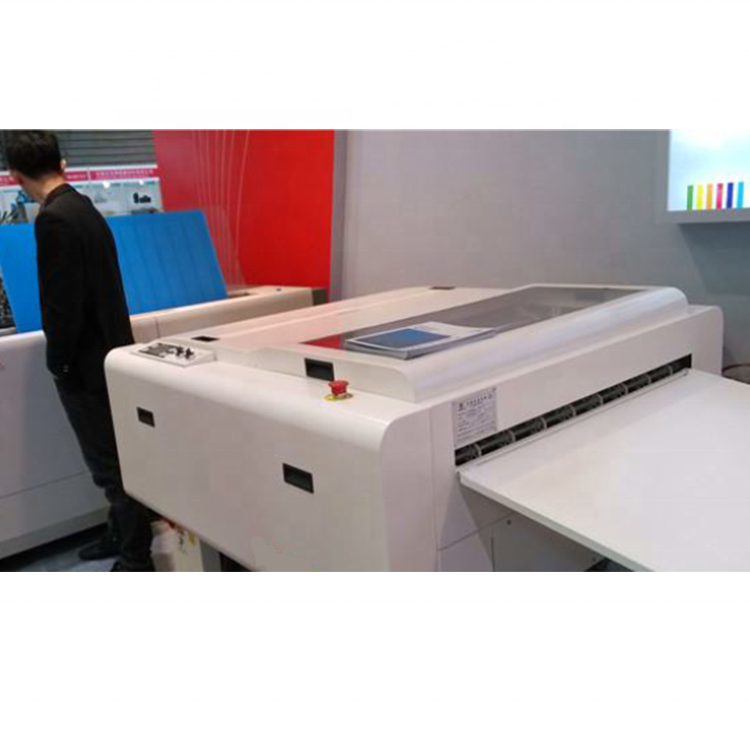

Huaguangbaoli Automatic Photopolymer Flexo CTP Plate Making Machine
High Quality Automatic Photopolymer Flexo CTP Plate Making Ma
| Model | SL—88TH | SL—120TH | SL—140TH |
| Material | Thermal/UV CTP plate, CTcP plate | ||
| Capacity(cm/min) | 20-150 | ||
| Plate width (mm) | 880mm | 1200mm | 1400mm |
| Min. Plate length(mm) | 300 | ||
| Plate thickness(mm) | 0.15-0.4 | ||
| Tank content, developer(L) | 38 | 56 | 68 |
| Tank content, wash(L) | 13.5 | 18 | 20 |
| Adjustable temperature, dev(°C) | 0—40(104°F)0 to 40°C adjustable (32—104°F) | ||
| Adjustable temperature, dry(°C) | |||
| Water consumption, max(L/min) | 8 | 10.5 | 12 |
| Diameter of wash brush (mm) | 50 | ||
| Rotary speed of wash brush | 80 | ||
| Filter(um) | 75 | ||
| Water supply | Tap water (min. pressure 1 bar) | ||
| Gumming | Roller pressing gumming | ||
| Diameter of roller | 60mm | ||
| Dev. replenishment | 0-1 | ||
| Dev. heating-up rate | 0.5 | ||
| Horizontal adjustment | Adjustable | ||
| Power supply | 220V 1φ 50—60Hz 30A | ||
| Power consumption (kw/h) | 3.5 | 4 | 4.5 |
| Voltage fluctuation | ±10% | ||
| Gross weight(kg) | 500 | 650 | 780 |
| Net weight(kg) | 420 | 580 | 650 |
| Mechanic size(mm) | 1260*1520*1040 | 1525*1520*1040 | 1850*1555*1040 |
| Packing size(mm) | 1360*1620*1250 | 1625*1620*1250 | 1950*1655*1250 |
| Optional configuration :plate stack .water filtration system | |||
SUZHOU HUAGUANGBAOLI PRINTING PLATE CO.,LTD
- 1
- 2
- 3
- 4
- 5
Professional Manufacturer For Printing Plates--Ctp Plate, Ctcp Plate, Ps Plate, Graphic Film,Violet Ctp Plate, Mother Company Is Huaguang Group In China.
Huaguang HSV violet CTP plate allows for consistent printing performance with high-quality results for sheet-fed and web printing. The plates and chemicals are compatible with a variety of CTP plate processing systems, configured for either automated or operator- assisted production environments.
Huaguang HSV violet CTP plate combines wide exposure latitude with consistent, durable printing that can yield 250,000 impressions (1,000,000 impressions with post baking). In addition, excellent water/ink balance ensures less waste and greater value in the make-ready stage of printing. The scratch-resistant photosensitive coating and excellent printing performance can protect the plate, allowing faster roll-up and less paper waste.
