Nitrogen filling automatic weighing packaging machine
| Payment Type: | L/C,T/T |
|---|---|
| Terms of Trade: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 35 Days |
| Packaging: | wooden case |
|---|---|
| Transportation: | Ocean |
| Port: | Qingdao |
Basic Info
Model No.: GQ-420/ 520/ 720
Product Description

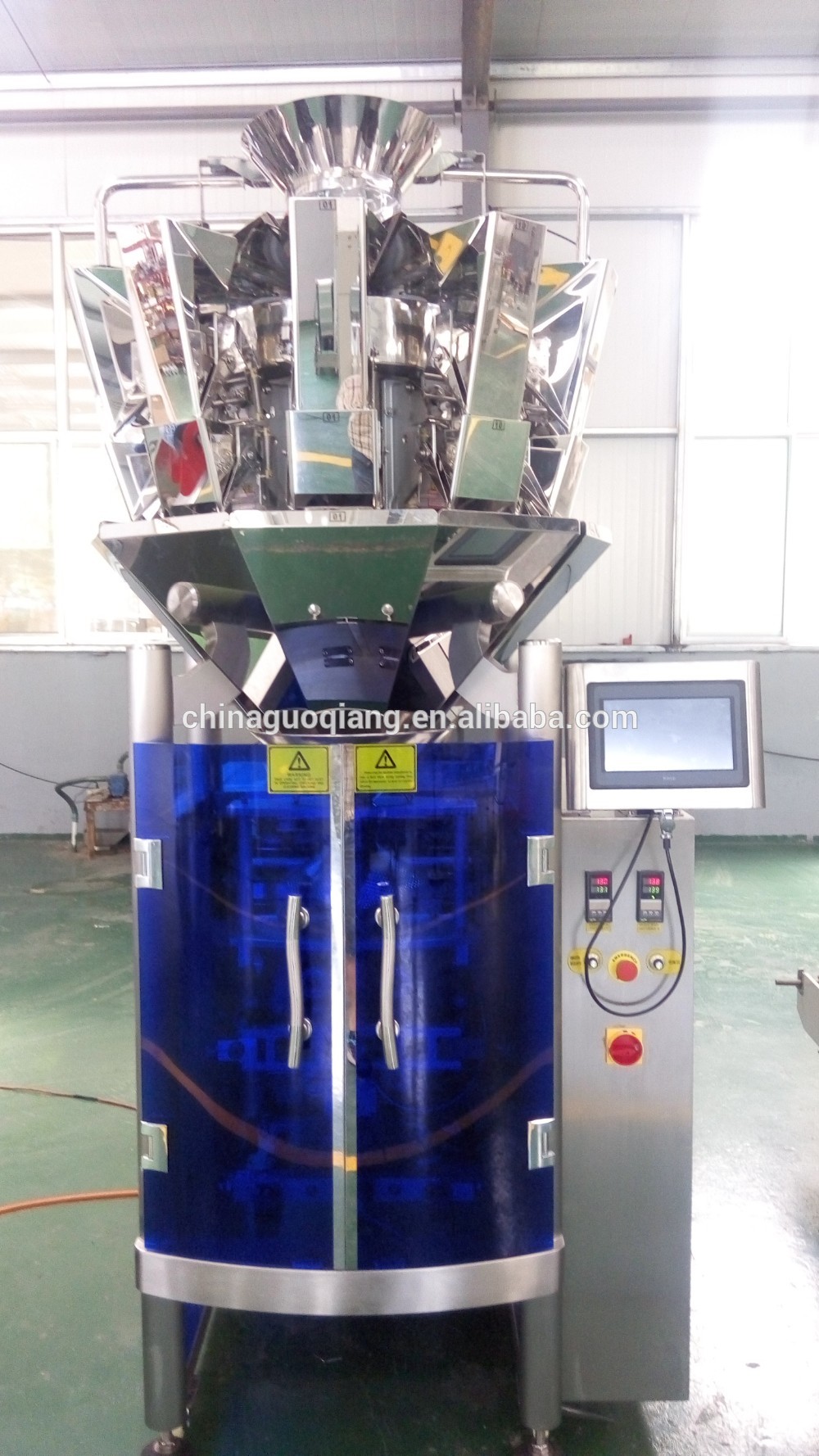

Nitrogen filling automatic weighing packaging machine
Product Description
Applications：
This machine is suitable for used in packing the high accuracy and easy fragile material, such as puffed food, crispy rice, candy, pistachio, apple slices, dumplings, chocolate, pet food, small hard wares, medicine etc.
Features
Traction structure use servo motor, which enable high accuracy in terms of positioning, and it’s easy to adjust.
Transverse sealing is complete by servo motor, the pressure and distance of stretch are adjustable anytime to keep the sealing mouth airproof.
Equipped with blowing nitrogen gas and exhaust gas device.
The filling head can be swapped to fit different materials.
| Model | GQ-420 | GQ-520 |
| Max Bag width | 200mm | 250mm |
| Bag length | 50-300mm | 80-350mm |
| Film thickness | 0.04-0.08mm | 0.04-0.08mm |
| Packing speed | 30-60bag/min | 30-60bag/min |
| Air consumption | 0.6m³/min | 0.6m³/min |
| Power specification | 4kw/220V,50/60Hz | 4.5kw/220V,50/60Hz |
| Dimension | 1800*1100*2300mm | 1900*1200*2500mm |
| Gross weight | 400KG | 500KG |
Outside package：standard export wooden cases
Inner package：stretch film
We provide customers with excellent after-sales service
1.One year guarantee and life-long service,the after-sales service website, telephone hotline and fax within 24 hours are available.
2.Always prepare quick-wear, consumable and important spare parts in spare part warehouse to give customer a reply in the first time.
3.Pay regular return visits for every customer to solve the hidden troubles in their equipment and provide the latest equipment information.
4.Qualified skilled service team completes after-sales services for every customer in a timely fashion.
(1) Are you a factory or trading company?
We are factory manufacturing packaging machines for more than 5 years and we provide perfect OEM and engineers available to overseas after-sale service.
(2) What is your delivery time?
About 25-30 working days.
(3) What is payment terms?
TT with 30 % and 70 % balanced before shipment.
(4) How to contact us?
You can write inquiry below and click "sent" it out.
